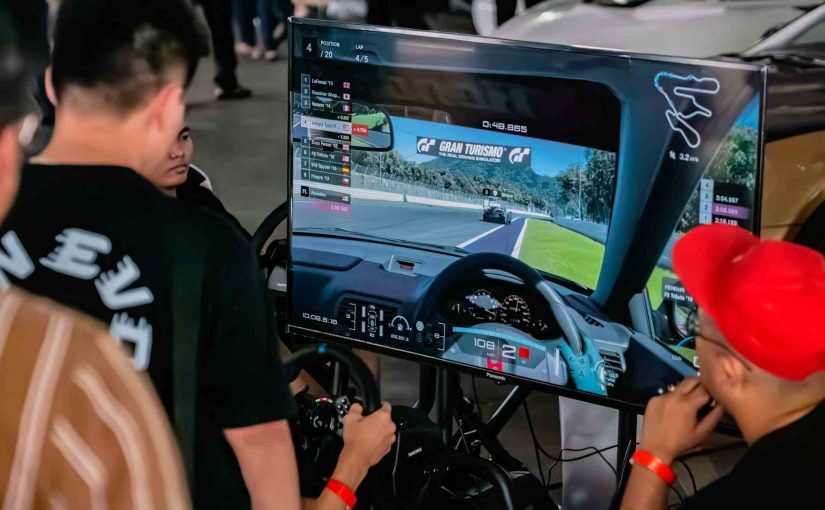

Driving Sim Hardware: Building Realistic Experiences Through Software

For decades, driving simulation hardware has been a fascinating intersection of mechanical design and digital engineering. While hardware continues to evolve  –  with powerful motors, precision sensors, and high-end build materials  –  the true realism of a racing simulator doesn’t come from aluminum frames or forceful torque alone.

It comes from software.

From the moment a virtual car’s tire touches digital asphalt, countless software and firmware systems translate telemetry data into haptic feedback, torque control, and sensory realism. Behind every smooth steering correction, every subtle vibration, and every precise pedal pressure lies a finely tuned orchestration of code.

Today, leading manufacturers like Fanatec, Logitech, and Thrustmaster all rely heavily on their software ecosystems to transform good hardware into immersive simulation experiences.

This post explores how firmware, drivers, and control software work together to bring realism to life  –  and why software is now the defining factor in high-performance driving simulators.

1. The Core Components of Sim Hardware

To appreciate the complexity of the software’s role, we must first define the modern driving sim hardware ecosystem. This ecosystem is a carefully balanced interplay of electromechanical devices, all communicating at millisecond speeds.

Steering Wheels and Bases

The wheel base is the heart of the system, housing the motor (or belt/gear drive) and the electronics that drive it.

• Force Feedback Motors: High-end wheels use brushless DC motors (often direct-drive) to apply torque directly to the steering shaft. The quality of the motor is important, but the quality of the signal sent to it is paramount.
• Encoders: These are critical sensors – optical, magnetic, or even more complex – that report the wheel’s exact rotational position back to the microcontroller. High-resolution encoders (often measuring hundreds of thousands of steps per revolution) are fundamental to precision.
• Microcontrollers: The brain of the base, managing the motor control, reading the encoder data, handling communication with the host PC/Console, and executing the racing wheel firmware.

Pedal Sets

Modern performance pedal sets are built around replicating the feel and function of real racing hydraulics.

• Load Cells: Used primarily in the brake pedal, these sensors measure the actual force (pressure) applied by the driver’s foot, offering far more realistic and consistent braking control than simple travel position sensors.
• Sensors: Hall effect sensors or magnetic sensors are often used for the throttle and clutch, offering non-contact (and thus highly durable) position sensing.
• Pressure Curves: The simulation hardware development challenge here is translating the linear output of a load cell into a non-linear, in-game braking curve that mimics the hydraulic resistance and travel of a real car’s system. This is entirely managed by custom firmware for racing simulators and companion software.

Shifters, Handbrakes, and Additional Input Devices

These peripherals – including sequential shifters, H-pattern shifters, and analog handbrakes – use various sensors to provide additional inputs.

The interaction model for all these components is a high-speed digital conversation. Sensors convert physical input (rotation, pressure, position) into electrical signals. Microcontrollers in each peripheral process this raw data, often performing initial filtering and calibration, and then transmit the refined data packet to the PC or console via a structured communication protocol.

The Importance of Firmware as the “Translator”

Firmware is the persistent software programmed into the non-volatile memory of the device’s microcontroller. It is the foundational operating system of the hardware. Its role is absolutely vital:

• Data Acquisition: Continuously reading raw data from all sensors (encoders, load cells) at high frequency (often thousands of times per second).
• Data Translation: Converting this raw sensor data into meaningful digital values that the PC can understand (e.g., converting an analog voltage into a digital 0-65535 range).
• Actuator Control: Receiving commands from the PC (e.g., “apply 5 Newtons of torque right”) and translating that into the precise electrical signals needed to drive the motor controller.

In essence, the racing wheel firmware acts as the high-speed, low-latency “translator” between the raw mechanical physics simulated in the game and the electromechanical reality of the peripheral device. Without highly optimized firmware, the most expensive driving sim hardware is merely a collection of unresponsive, high-quality components.

2. Force Feedback and Haptics: The Software Behind the Feel

The single most defining feature of a modern driving simulator firmware development product is its ability to communicate the dynamics of the vehicle back to the driver – a process primarily managed through force feedback software and haptics. This is where software takes the lead, shaping raw motor power into tactile, convincing information.

The Physics-to-Feedback Pipeline

The process of generating the “feel” is a complex, multi-stage pipeline that must execute with near-zero latency:

1. In-Game Telemetry: The simulation software (e.g., iRacing, Assetto Corsa) runs its physics engine. Based on the car’s current state (tire slip, load on suspension, steering rack torque), it calculates the required feedback forces.
2. API/SDK Translation: This force data is passed to the operating system (e.g., DirectInput in Windows) or a proprietary console SDK, which then sends the command to the peripheral driver.
3. Firmware Logic: This is the critical juncture. The wheel base’s custom firmware for racing simulators receives the force command (e.g., “send 70% strength, 20% damping, 10% friction”) and begins processing it.
4. Motor Control: The firmware’s control loop executes the necessary algorithms to shape the raw command into the final electrical signals that command the motor to produce the intended torque at the wheel rim.

Algorithms That Shape Realism

A raw, unfiltered force signal from a game can often feel harsh, unnatural, or simply too clinical. The firmware applies sophisticated algorithms to enrich and refine this signal, achieving the elusive sense of “connection” to the digital car.

The ability to write custom firmware for racing simulators that executes these algorithms efficiently and precisely is what separates a premium product from a mediocre one. It is the reason why a wheel from one manufacturer can feel dramatically different from a competitor’s, even if both use the same industrial-grade motor. The responsiveness and precision are products of the software engineer’s art.

The role of calibration software is equally important. This is the first touchpoint where the user can personalize the core performance. Software ensures the load cell’s maximum pressure is correctly mapped, the dead zones are minimized, and that the wheel’s 900 or 1080 degrees of rotation are perfectly synchronized with the digital car’s steering lock.

3. Firmware’s Hidden Role: Precision, Safety, and Responsiveness

If force feedback software defines the feel, the quality of the embedded firmware defines the product’s precision, safety, and responsiveness. These are the non-negotiable qualities that determine a peripheral’s quality and longevity.

Real-Time Response and Latency Challenges

In high-stakes simulation, input lag – or latency – is the enemy. If a driver sees the car beginning to slide but the force feedback arrives 50 milliseconds late, their corrective input will also be late, resulting in a crash. High-performance gaming peripheral firmware must operate on extremely tight schedules.

• Firmware Control Loops: The microcontroller constantly runs multiple, prioritized loops. The motor control loop, which dictates the output torque, often runs at a frequency far exceeding the PC’s refresh rate (e.g., 1000 Hz to 20,000 Hz. This real-time control firmware is meticulously engineered to ensure that force commands are translated to motor action with minimal delay, usually under 4 milliseconds.
• Optimizing Communication Protocols: A key element of reducing input lag is optimizing the communication layer. Moving beyond standard, generic USB Human Interface Device (HID) protocols to specialized, high-speed protocols (sometimes proprietary, sometimes based on protocols like CAN bus or optimized USB transfer modes) is essential. The firmware controls how quickly and efficiently data packets move between the hardware and the host machine.

Safety Mechanisms: Protecting the User and the Product

High-torque direct-drive wheels are powerful machines that can cause injury if they malfunction. The driving simulator firmware development team bears the responsibility for building robust motor driver safety mechanisms right into the hardware’s core logic.

Product Lifespan and Improvement via Firmware Updates

Unlike purely mechanical devices, driving sim hardware benefits from continuous improvement long after purchase. Firmware updates are the primary vehicle for this. A firmware revision can:

• Improve the motor’s responsiveness by refining the PID loop.
• Add compatibility for a newly released console or PC title.
• Introduce entirely new force feedback software algorithms (e.g., adding a new friction model or a ‘road texture’ enhancement).
• Correct a subtle bug causing a momentary loss of feedback at a specific speed.

This ability to enhance realism and extend product lifespan through software makes the initial investment in robust, updateable gaming peripheral firmware development a critical factor in product quality and customer satisfaction.

4. Companion Apps & Tuning Software: Bridging User and Machine

The user experience (UX) of modern sim hardware is no longer confined to the physical device; it extends into sophisticated, intuitive companion apps and tuning software. These applications serve as the vital bridge between the user’s personal preference and the hardware’s deep, complex control logic.

User Control and Personalization

While the real-time control firmware executes the core motor logic, the desktop application allows users to manipulate the high-level parameters that define the feel of their experience.

• Fine-Tuning Sensitivity and Curves: Users can graphically adjust non-linear curves for the throttle, brake, and clutch. For example, a driver might want the first 50% of the throttle pedal travel to be less sensitive (to prevent wheelspin) and the second 50% to be more aggressive. This is all managed by the cross-platform controller software which translates the user’s curve into a lookup table for the firmware.
• Feedback Customization: The application provides intuitive sliders or numeric inputs to adjust global settings like overall force strength, dynamic damping, friction, and inertia. High-quality software provides tooltips and visual aids to explain what each setting does – a key part of enhancing product value.
• System Diagnostics: These apps often contain a diagnostics tab, allowing users to verify sensor inputs, check the motor temperature, and review fault codes, eliminating the need for complex, cryptic troubleshooting.

The Importance of Intuitive UX/UI

The best simulation experience software is one that takes complex, technical parameters and presents them in an easy-to-understand, intuitive interface.

• Desktop and Cross-Platform Tuning Suites: Whether it’s running on Windows, macOS, or even integrated into a console’s home screen, the UX/UI of the companion app is a direct reflection of the brand’s commitment to the user. A clunky, unintuitive interface can frustrate users and undermine the quality of the hardware itself.
• Cloud-Based Profiles and Community Sharing: For competitive gamers, the ability to save a perfectly tuned profile (for a specific car, track, or simulation title) to the cloud is essential. The ability for users to share their optimal setups – from force feedback software gains to pedal curves – fosters a community around the product. This ecosystem approach is a key builder of brand loyalty.

Example: Brands like Fanatec, Logitech G Hub, and Thrustmaster all use their software ecosystems as a central point of user interaction. Logitech G Hub, for instance, automatically detects the game being launched and applies a pre-configured, optimized profile, significantly lowering the barrier to entry for casual users while still providing granular control for advanced users. This integration of software with the daily user flow is a massive competitive advantage.

5. Cross-Platform Integration: PC, Console, and Mobile Challenges

In a multi-platform world, the challenge for simulation hardware development teams is ensuring a consistent, high-fidelity experience regardless of the host system. This necessitates significant engineering complexity and deep developer expertise in varied operating system environments.

Adapting to Different APIs and SDKs

Every platform uses a different set of rules for handling peripheral input and feedback:

• PC (Windows): Primarily relies on DirectInput for force feedback and DirectInput/XInput for buttons and axes. DirectInput is powerful but complex to implement, requiring specialized drivers to unlock the full potential of high-resolution sensors and high-frequency force feedback.
• Consoles (PlayStation, Xbox): These platforms use proprietary Software Development Kits (SDKs) and APIs (like the PS SDK) that are tightly controlled. The hardware must contain specific security chips and the gaming peripheral firmware must adhere precisely to the platform’s communication protocols to be recognized and licensed.
• Other/Mobile: Protocols like USB HID (Human Interface Device) are used for general compatibility, while wireless technologies like CAN or BLE (Bluetooth Low Energy) require specialized cross-platform controller software stacks.

Firmware Abstraction Layers

To achieve multi-platform compatibility without maintaining completely separate firmware for each product variant, developers use an abstraction layer.

The firmware abstraction layer is a portion of the code that sits between the platform-specific communication logic (e.g., the code that handles an XInput command) and the hardware-specific control logic (e.g., the code that controls the motor driver). This means that a single core firmware base can be used across multiple platforms, reducing maintenance overhead and ensuring a consistent performance baseline.

This process is a continuous cycle of updates, driver releases, and re-certifications. A successful product is one whose developers treat cross-platform controller software as an ongoing service, not a one-time build.

6. The Future of Driving Sim Software

The driving sim hardware software landscape is poised for a significant transformation, driven by advancements in data science, connectivity, and immersive technology. The next generation of peripherals will be characterized by intelligence and adaptive personalization.

AI-Driven Feedback Calibration: The Adaptive Wheel

The days of manually tuning 20 different feedback parameters in a companion app are ending. The future will involve AI-driven feedback calibration.

• Adaptive Torque and Auto-Tuning: Future custom firmware for racing simulators will use machine learning models embedded in the companion app (or the base itself) to analyze a user’s driving input. It will learn the user’s steering speed, input force, and correction tendencies, then automatically adjust damping, friction, and overall gain to provide a feeling that is optimally suited for that specific driver. The software will move beyond presets; it will become self-calibrating.
• Machine Learning for Predictive Haptics: Advanced systems will analyze telemetry data – not just what the car is doing, but what it will do. For example, by analyzing tire load and slip angle, the system could pre-emptively generate a distinct haptic pulse to signal impending oversteer a few milliseconds before the physics engine fully manifests the slide. This predictive haptic feedback system will require extremely powerful real-time control firmware running complex neural network models.

Cloud-Connected Systems

Connectivity is no longer just about communication between the wheel and the PC; it’s about connecting the peripheral to the cloud.

• Cloud-Connected Firmware Updates and Telemetry Analytics: Firmware updates will become seamless, pushed directly to the device without the need for manual download. Furthermore, users will have the option to securely transmit anonymous performance telemetry (e.g., brake pedal pressure over a lap) to the cloud. This data can be aggregated by manufacturers to refine their next-generation firmware models, optimizing the feel based on the collective data of thousands of top drivers.

Integrating VR and Haptic Feedback for Full Immersion

As VR/AR becomes more common in simulation, the software layer will have to synchronize visual input with physical feedback even more tightly.

• Unified Haptic Ecosystems: Future systems will see the wheel, pedals, seats, and even suits integrated into a single haptic feedback system managed by a central software layer. If the car runs over a curb, the force feedback will kick the wheel, the bass shakers in the seat will vibrate, and the haptic vest will give a jolt, all perfectly synchronized by an overarching master control application.

7. The Developex Advantage: Turning Hardware Into Experience

The transition from raw mechanical power to a nuanced, realistic digital experience is the essence of modern simulation. This transformation relies entirely on the invisible layer of expertise: the software, the drivers, and the firmware.

At Developex, we specialize in this critical, often underestimated layer of the product. Our expertise covers the full spectrum of eGaming software development  –  from embedded firmware to cross-platform user applications  –  helping leading brands turn hardware precision into immersive performance.

• Embedded Firmware and Real-Time Control: We engineer high-frequency, low-latency real-time control firmware that unlocks the full potential of direct-drive motors, high-resolution encoders, and load cell sensors. From writing motor control logic to designing proprietary communication protocols, we build the foundation of performance.
• Software UX and Cross-Platform Applications: We design and implement intuitive, reliable cross-platform controller software and companion apps. Our solutions allow users to effortlessly fine-tune their hardware, manage cloud-based profiles, and receive seamless updates across PC, console, and mobile ecosystems.
• Safety and Compliance: Our gaming peripheral firmware incorporates robust safety mechanisms – from thermal management and fault detection to compliance with console SDKs – ensuring your product is not only fast and precise but also secure and compliant globally.

We don’t just write code; we engineer the feeling. We deliver the invisible layer that translates physics to precision, making the difference between a simple toy and a top-tier training tool.
