WHQL Certification: Mastering the Testing Workflow & Strategic Optimization – Part 2

WHQL Certification Workflow Optimization

Welcome to the second part of our comprehensive guide on WHQL Testing. In Part 1, we covered the strategic importance of WHQL certification, its business benefits, security implications, and how to set up your test environment. Now, let’s dive into the practical aspects of navigating the WHQL workflow, understanding driver signing, implementing cost-effective strategies, and mitigating common pitfalls to ensure your hardware achieves seamless integration with Windows.

Once your test lab is set up and configured, the actual testing process is managed through the HLK Studio application on the controller. This workflow follows a structured, five-step sequence that guides you from preparing test machines to creating the final package for Microsoft submission.

Step 1: Create a Machine Pool

First, organize your test clients within HLK Studio. New HLK Clients automatically appear in a default pool upon connection, but you can’t run tests against it. You must create a new, custom machine pool via the “Configuration” tab. Name your new pool, drag the desired test client machines into it from the default pool, and finally, change each client’s status to “Ready” to initialize and prepare them for testing.

Step 2: Create a Test Project

A test project serves as the main container for a specific certification effort. It groups your machine pool, selected targets, test results, and the final package. Create a new project by clicking “Create project” in HLK Studio and give it a descriptive name for the device or driver version being tested.

Step 3: Select a Target

This is a pivotal step where you identify the specific device or driver feature to be tested. In the “Selection” tab of your project, browse the hardware and software components of the machines in your chosen pool. The “device manager” view is often the most granular and common for driver certification. Navigate this tree and select the specific target corresponding to your product. For a device to be certified, all of its testable features must be selected and pass the required tests.

Step 4: Select and Run Tests

After selecting a target, the “Tests” tab populates with all applicable tests, automatically filtered by the HLK. These tests are organized into categories based on their purpose and development phase:

  • Bring Up: Fundamental tests to verify device initialization and basic function (e.g., Sleep with I/O before and after).
  • Development and Integration: Broad tests for correct implementation and OS integration (e.g., HyperVisor Code Integrity Readiness, compliance tests).
  • Reliability: Stress tests to ensure the device and driver withstand extreme conditions without failing (e.g., fuzz open/close, reboot-restart with I/O during disk stress).
  • Tuning and Validation: Verification tests, such as checks for INF file syntax and signature verification.
  • Manufacturing & Support: Tests relevant to production and long-term maintenance, including Secure Boot logo and ApiValidator tests.

To run tests, select the desired cases (often guided by a Microsoft-provided “playlist” file for specific programs) and click “Run Selected.” The HLK Controller then automatically schedules and executes these tests on the client machines.

Step 5: Analyze Results and Create the Submission Package

As tests finish, the “Results” tab updates with a “pass” or “fail” status for each. If a test fails, you can right-click to view a detailed error report and access the test log file (.wtl extension). These logs can be opened with the Windows HLK Manager and are essential for debugging the failure’s root cause.

Once all required tests for the selected target pass, the final step is to create the submission package. On the “Package” tab, add driver files, symbol files (.pdb) for Microsoft’s debugging analysis, and any other supplemental data. Clicking “Create Package” generates a single .hlkx file. During this process, select “Do not sign,” as Microsoft applies the final official signature after submission. This .hlkx package is the final artifact uploaded to the Hardware dashboard on the Microsoft Partner Center for review and, upon approval, final signing.

Demystifying Driver Signing: WHQL, Attestation, and Self-Signing

Digital signatures are crucial for distributing drivers on modern Windows. The signing method profoundly impacts a driver’s security, trustworthiness, and installability. There are three primary signing mechanisms, each with distinct requirements and assurance levels.

The Gold Standard: WHQL Certification Signing

This method offers the highest level of trust and quality. A driver package that successfully passes all required HLK tests and is approved by Microsoft receives a WHQL release signature. Microsoft, not the developer, applies this signature using its highly protected “Windows Hardware Compatibility Publisher” certificate. The signature is applied to a catalog file (.cat), which contains cryptographic hashes of all files in the driver package, ensuring their integrity. A WHQL signature signifies that the driver is rigorously vetted for reliability, performance, and compatibility, not just that it will load securely.

The Security Baseline: Attestation Signing

Attestation signing is a more streamlined process Microsoft introduced for developers to meet mandatory Windows 10 and 11 security requirements without the full, time-consuming HLK testing. To use this, a developer must first obtain an Extended Validation (EV) code signing certificate, which requires stringent identity verification and hardware token storage for the private key.

The developer then packages the driver files into a cabinet (.cab) file and submits it to the Hardware Dev Center portal. During submission, the developer attests—formally declares—that they have performed necessary testing for driver quality and stability. Microsoft then signs the driver package based on this attestation.

The key difference: WHQL requires exhaustive test logs for verification (trust but verify), while Attestation relies on the developer’s claim of quality without logs. Both methods result in a Microsoft-signed driver that loads on systems with Secure Boot enabled. However, Attestation is faster for meeting the minimum security bar, while WHQL certification is more arduous but offers greater value by proving quality, enhancing trust, and granting faster access to premium distribution channels like Windows Update.

Legacy Methods: Self-Signing and Cross-Signing

For older Windows versions (pre-Windows 10), developers could self-sign drivers using a standard code signing certificate and a Microsoft-provided “cross-certificate.” This cross-signing process is now considered legacy. With new driver signing policies in Windows 10 (version 1607 and later), any new kernel-mode driver for a system with Secure Boot must be submitted to the Microsoft portal for either WHQL or Attestation signing. Cross-signing is no longer viable for commercial distribution on modern Windows platforms.

The following table summarizes the key differences between these signing methods to aid in strategic decision-making.

MethodKey RequirementLevel of AssuranceWindows Update DistributionBest For…
WHQL CertificationPassing full HLK test suite and submitting logs to Microsoft.Highest: Verifies quality, reliability, and security through rigorous testing.20Yes: Preferred method for automatic distribution.Commercial products where stability, reliability, and customer trust are paramount.
Attestation SigningEV code signing certificate and submission of a driver package with a declaration of testing.Baseline Security: Meets Microsoft’s mandatory signing requirements to load on secure systems, but quality is not verified by Microsoft.20Possible: But may be a slower process than WHQL submissions.Internal testing, rapid development cycles, or situations where the full WHQL process is not feasible but a Microsoft signature is required.
Self/Cross-SigningStandard code signing certificate and Microsoft cross-certificate.Legacy: Does not meet security requirements for new drivers on modern Windows 10/11 with Secure Boot enabled.12No.Drivers for Windows 7/8 or systems where Secure Boot is disabled. Not a viable option for modern commercial distribution.

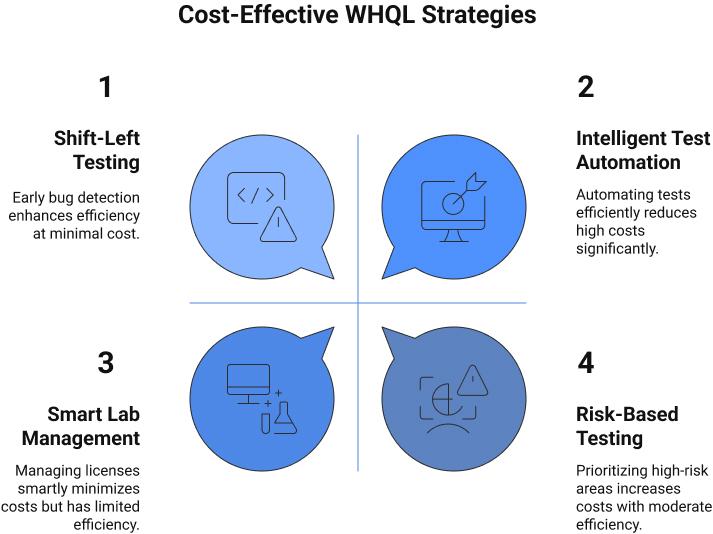

Optimizing for Efficiency and Budget: Cost-Effective WHQL Strategies

While the formal WHQL certification submission fee is zero, the process involves significant operational and capital expenditures. A strategic approach is crucial to manage these costs without compromising quality. The main cost drivers are hardware infrastructure, software licenses, and, most importantly, the engineering hours for setup, execution, and debugging. The following strategies help optimize WHQL testing for both efficiency and budget.

Strategy 1: Shift-Left Testing

The “shift-left” principle integrates quality assurance into the earliest development stages, rather than waiting until the end. The later a defect is found, the more expensive it is to fix. By catching bugs during coding or unit testing, developers can resolve them quickly and cheaply. Finding the same bug during the formal, time-consuming HLK process is far more costly. This approach emphasizes involving developers in testing, creating comprehensive unit tests, and designing drivers with testability in mind.

Strategy 2: Risk-Based Testing

Risk-based testing recognizes that not all driver parts carry the same risk. Instead of uniform testing, this approach prioritizes efforts based on failure likelihood and impact. For example, new, complex, or core functionalities are high-risk and get more intensive testing. This ensures limited resources focus where they provide the most value, maximizing defect detection in critical areas.

Strategy 3: Intelligent Test Automation

While the HLK process is largely automated, a strong automation strategy for the pre-certification phase is a powerful cost-reduction tool. Automating repetitive tests—like regression, integration, and basic functional tests—builds a solid quality baseline before the driver enters the formal HLK environment. This frees up skilled QA engineers and developers for high-value manual activities like exploratory testing, usability, and complex edge-case analysis. For drivers with user interfaces, using patterns like Page Object Model (POM) is crucial for modular, reusable, and maintainable automated test scripts.

Strategy 4: Smart Lab and License Management

Software license costs for the test lab can be substantial, but they can be managed intelligently. For test client machines frequently formatted and reimaged, leverage Windows’ 90-day activation grace period to potentially avoid purchasing full licenses for every short-term machine. For the HLK Controller, Microsoft often provides evaluation versions of Windows Server as VHDs with six-month licenses, simplifying initial setup and deferring full license costs. Additionally, using the Virtual HLK (VHLK) for the controller can reduce physical hardware, power, and maintenance costs.

Common Pitfalls and Proactive Mitigation Strategies

The road to WHQL certification is full of challenges that can derail projects, inflate budgets, and delay launches. Many pitfalls aren’t due to driver quality but stem from the complexity and quirks of the testing environment and process. Proactive understanding of these common issues is key to success.

The Flawed Toolset: Navigating HLK Bugs

A significant challenge, even for experienced teams, is that the HLK and HCK test harnesses are complex software systems that can have their own bugs. Teams report “legacy heisenbugs,” inconsistent database behavior, and sporadic crashes of testing services. These issues can lead to false test failures, sending development teams on costly wild goose chases to debug a problem in the test tool, not their driver.

Mitigation:

  • Use Microsoft Errata and Filters: Microsoft acknowledges its tests can fail incorrectly. When identified, they release an “errata” or “filter” that can be applied in HLK Studio to override the incorrect failure, allowing submission to pass. Always download and apply the latest filters.
  • Develop or Acquire Expertise: Engineers working extensively with the HLK develop intuition for distinguishing genuine driver failures from test harness failures. This often involves deep log analysis and consulting community resources like OSR Online forums.
  • Maintain a Pristine Environment: Many inexplicable test failures trace back to a misconfigured or “unclean” test environment. A single incorrect setting or residual software can cause cascading failures.

Environment and Configuration Errors

Simple setup mistakes are among the most common WHQL testing problems, entirely avoidable with meticulous configuration.

Common Errors:

  • Failing to disable Secure Boot in the client machine’s UEFI/BIOS.
  • Incorrect network settings, firewall rules, or user account permissions preventing the HLK Controller from communicating with clients.
  • Attempting to test on a client machine not prepared with a “clean” OS installation.
  • Installing the HLK Controller on a server with an unsupported SQL Server version already present.

Mitigation: The most effective mitigation is to create and strictly follow a detailed lab setup checklist based on Microsoft’s official prerequisites documentation. Use this checklist every time a new controller or client is configured.

Critical Driver Development Mistakes

While many pitfalls are external to the driver, certain fundamental coding errors almost guarantee a cascade of WHQL test failures.

Example: Improper Handling of User-Mode Pointers: A kernel-mode driver must treat any data pointer from a user-mode application as untrustworthy. The memory location could be invalid, unaligned, or change at any moment. Failing to validate these pointers can lead to system crashes, data corruption, or severe security vulnerabilities. All user-mode memory access from a driver must be carefully wrapped in structured exception handling (e.g., try/except in C) to safely manage potential access violations.

Mitigation: Adhere to Microsoft’s secure driver development best practices. Utilize static analysis tools, like the Code Analysis for Drivers feature in the Windows Driver Kit (WDK), to automatically detect dangerous coding patterns early, long before the driver reaches the WHQL lab.

The Partnership Paradigm: Leveraging External Expertise for WHQL Success

Given the complexity, cost, and potential pitfalls of the WHQL process, organizations face a strategic “build vs. buy” decision. While building in-house capability offers long-term control, partnering with a specialized third-party firm is often the most efficient, cost-effective, and lowest-risk path to certification.

The “Build vs. Buy” Decision: Beyond Cost

Outsourcing WHQL testing should be seen as a strategic investment in speed and certainty, not just cost-saving. An experienced testing partner provides immediate, deep, specialized expertise and significantly de-risks a notoriously difficult process.

An in-house team tackling WHQL certification for the first time will spend considerable time and budget on a steep learning curve: troubleshooting the test harness, debugging the lab environment, and researching cryptic failures—all before effectively testing their own product. This learning process risks delays and budget overruns.

Specialized partners, conversely, already have pre-configured, validated test labs. Their teams have run hundreds of certification tests, possessing extensive experience in interpreting failures, applying correct Microsoft errata, and even working directly with Microsoft support on clients’ behalf. As a case study shows, an expert partner quickly identified an incorrect testing method and hardware-driver conflict as the root cause of weeks of client-diagnosed failures, saving immense time and wasted effort. Outsourcing is a strategic investment in certainty and speed, often yielding a far higher return than struggling with an internal effort.

Spotlight on Developex: Pre-Certification Readiness and Development

Within this partnership model, companies like Developex offer a distinct and highly valuable service. Developex provides comprehensive software development, QA, and testing services, with proven expertise in electronics software, embedded systems, firmware, and device drivers. Their industry experience spans demanding sectors like Audio & Video, Gaming Peripherals, and Smart Home & IoT.

Developex’s core value proposition in the WHQL context is ensuring pre-certification readiness. They are an ideal partner for implementing “shift-left” strategies. WHQL submission success heavily relies on the driver’s quality and robustness before formal testing.

Instead of just executing tests, a development partner like Developex can build the driver correctly from the start or harden an existing one for certification. This involves comprehensive code review, debugging, performance optimization, and targeted testing to meet the rigorous demands of the HLK test suite. Case studies validate this model, where expert firms rework drivers specifically to pass WHQL testing. Partnering with Developex to architect a driver for quality and testability from the start dramatically increases the probability of passing WHQL certification on the first attempt, avoiding costly and time-consuming test-fail-debug cycles.

WHQL in the Wild: Examples of Certified Products

The “Certified for Windows” logo isn’t just a theoretical badge; manufacturers across the hardware spectrum actively seek and display it. From internal PC components to daily peripherals, WHQL certification is a mark of quality and compatibility. Here are recent examples of certified products and categories.

Graphics Cards and Drivers

Graphics card drivers are among the most visible and frequently updated. Major manufacturers consistently submit their drivers for WHQL certification to ensure stability for gaming, content creation, and general use.

  • NVIDIA: Regularly releases WHQL-certified “Game Ready” drivers for its extensive lineup, including GeForce RTX 50, 40, and 30 series. For instance, driver version 576.80 received WHQL certification in June 2025.
  • AMD: Provides a steady stream of certified drivers through its Adrenalin Edition software. Version 25.6.1 became WHQL certified in early June 2025, supporting product lines like the Radeon RX 6000 and 7000 series.
  • Intel: Submits drivers for its integrated and discrete graphics solutions, including the Intel Arc A-Series, B-Series, and graphics on its Core Ultra processors. A WHQL-certified driver, version 32.0.101.6881, was released in June 2025.

PC Components: Motherboards

Motherboard manufacturers obtain WHQL certification not just for the board, but for drivers controlling integrated components like LAN, audio, and storage controllers.

  • ASUS: Provides WHQL-certified drivers for motherboards, such as Realtek LAN and Audio drivers for its B860M-E model, updated in late 2024. The company also innovates with new designs like the “Back To Future” (BTF) series announced for 2025, including the ROG Maximus Z890 HERO BTF, which will undergo certification for its components.
  • GIGABYTE: Actively certifies its motherboards and components. Their 2025 lineup includes high-performance models like the TRX50 AERO D, designed for the latest AMD Ryzen Threadripper 9000 series processors, and innovative designs like the B850 AORUS STEALTH ICE, featuring hidden connectors.

Systems and Laptops

Entire computer systems, from compact PCs to enterprise laptops, are submitted for certification to guarantee seamless operation with Windows.

  • Intel NUC: The “Next Unit of Computing” (NUC) family of mini PCs are regularly certified. For example, the NUC8i3CYSN model has an official Windows 10 64-bit Logo Verification Report, assuring users of its compatibility.
  • HP Laptops: Major manufacturers like HP certify their business and consumer laptops. The HP ProBook 440 G5 Notebook PC, for instance, is certified for multiple Windows 10 versions, from 1703 through 1809, demonstrating commitment to compatibility across the OS lifecycle.

Peripherals (Keyboards, Mice, Webcams)

Everyday peripherals are also certified to ensure plug-and-play reliability and compatibility with Windows features.

  • Logitech: A wide range of Logitech products are designed for Windows compatibility. The Brio 4K webcam is certified for Microsoft Teams and supports Windows Hello biometric login. The company’s new Signature Slim Wired Combo MK620, released in June 2025, is built to support Windows, macOS, and ChromeOS.
  • Razer: Known for gaming peripherals, Razer ensures its products work with Windows. The Razer Joro keyboard features a dedicated Microsoft Copilot key for quick access to AI features in Windows. The company’s flagship Razer Blade 16 laptop, announced for 2025, is another example of a complete system designed for high performance on Windows.

Audio Hardware

Both internal sound cards and external USB audio devices are certified to deliver high-fidelity, stable audio for gaming, music production, and communication.

  • Creative Labs: The iconic Sound Blaster line includes a wide array of WHQL-certified products. This includes internal PCI-e cards like the Sound Blaster AE-9 and external USB DACs such as the Sound BlasterX G6, noted for broad compatibility with PC and gaming consoles. The company continues to innovate, showcasing new products like the Sound Blaster G8 at CES 2025.

Spotlight on Developex: Your Strategic Partner for Pre-Certification Readiness

Navigating the complexities and potential pitfalls of the WHQL process often leads organizations to a pivotal “build vs. buy” decision. While developing in-house capabilities offers long-term control, partnering with a specialized third-party firm can be the most efficient, cost-effective, and lowest-risk path to certification, providing immediate access to deep expertise and significantly de-risking a notoriously challenging process.

Within this partnership paradigm, companies like Developex offer a distinct and highly valuable service. Developex specializes in comprehensive software development, QA, and testing services, with a proven track record and profound expertise in complex domains such as:

Their industry experience spans demanding sectors including Audio & Video, Gaming Peripherals, and Smart Home & IoT. This broad experience means they understand the unique performance, stability, and compatibility requirements that often lead to WHQL challenges.

The core value proposition of a partner like Developex in the WHQL context lies in ensuring pre-certification readiness. As discussed in our optimization strategies, the success of a WHQL submission is overwhelmingly determined by the quality and robustness of the driver before formal testing even begins. Developex is an ideal partner for implementing “shift-left” strategies, building quality in from the earliest stages of development.

Instead of simply acting as a test execution service, Developex can be engaged to:

  • Architect drivers correctly from the outset: Designing for testability and compliance from day one.
  • Harden existing drivers for certification: Taking an already developed driver and optimizing its code, performance, and stability to meet the rigorous demands of the HLK test suite. This includes in-depth code reviews, targeted debugging, and performance optimization.

This model is validated by case studies where clients have successfully engaged expert firms to rework and improve their drivers specifically to pass WHQL testing. By partnering with Developex to craft a driver for quality and testability from the start, a company can dramatically increase the probability of passing WHQL certification on the first attempt, thereby avoiding the costly and time-consuming cycles of testing, failing, and debugging that often plague less prepared efforts. It’s a strategic investment in certainty and speed, yielding a far higher return than the apparent cost savings of a struggling internal effort.

Ready to streamline your WHQL certification process and ensure your hardware stands out? Partner with Developex to build robust, compliant drivers from the ground up or harden your existing solutions for seamless Windows integration.
